BZB-8000 Spray Booth

This Spray Booth is designed for heavy-duty use, with robust construction, efficient ventilation, and heating systems, and ample lighting. The large doors and ramps suggest it is intended for commercial purposes, such as a workshop. The use of high-quality components (e.g., Schneider, Riello) indicates a focus on reliability and performance.

Dimensions:

·        Internal Size: 6900×4000×2650 mm (L×W×H)

·        External Size: 7006×5356×3400 mm (L×W×H)

Doors and Windows:

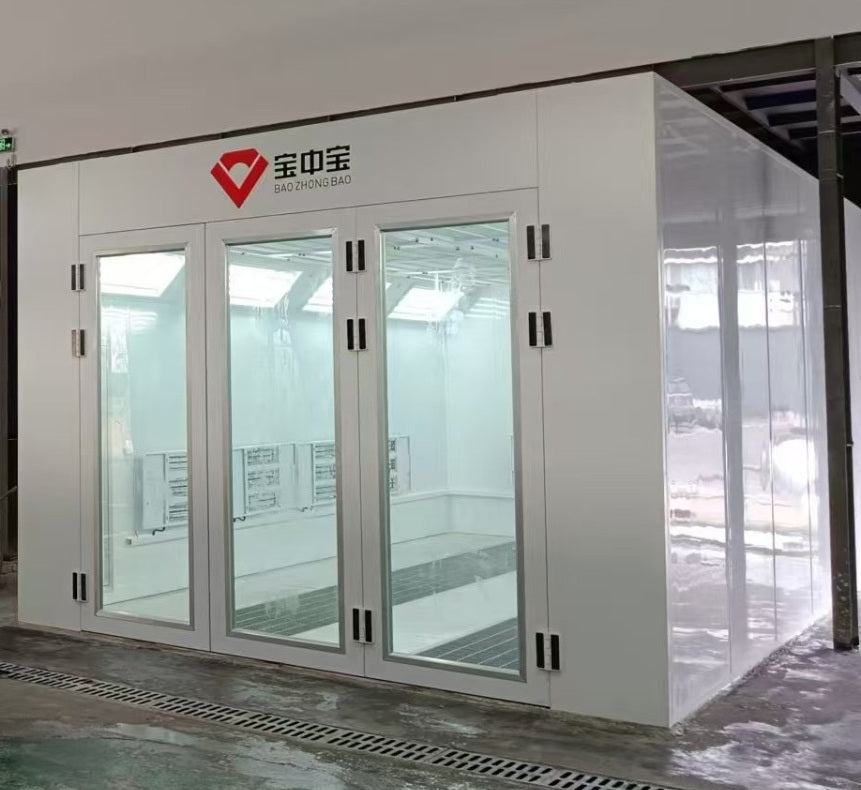

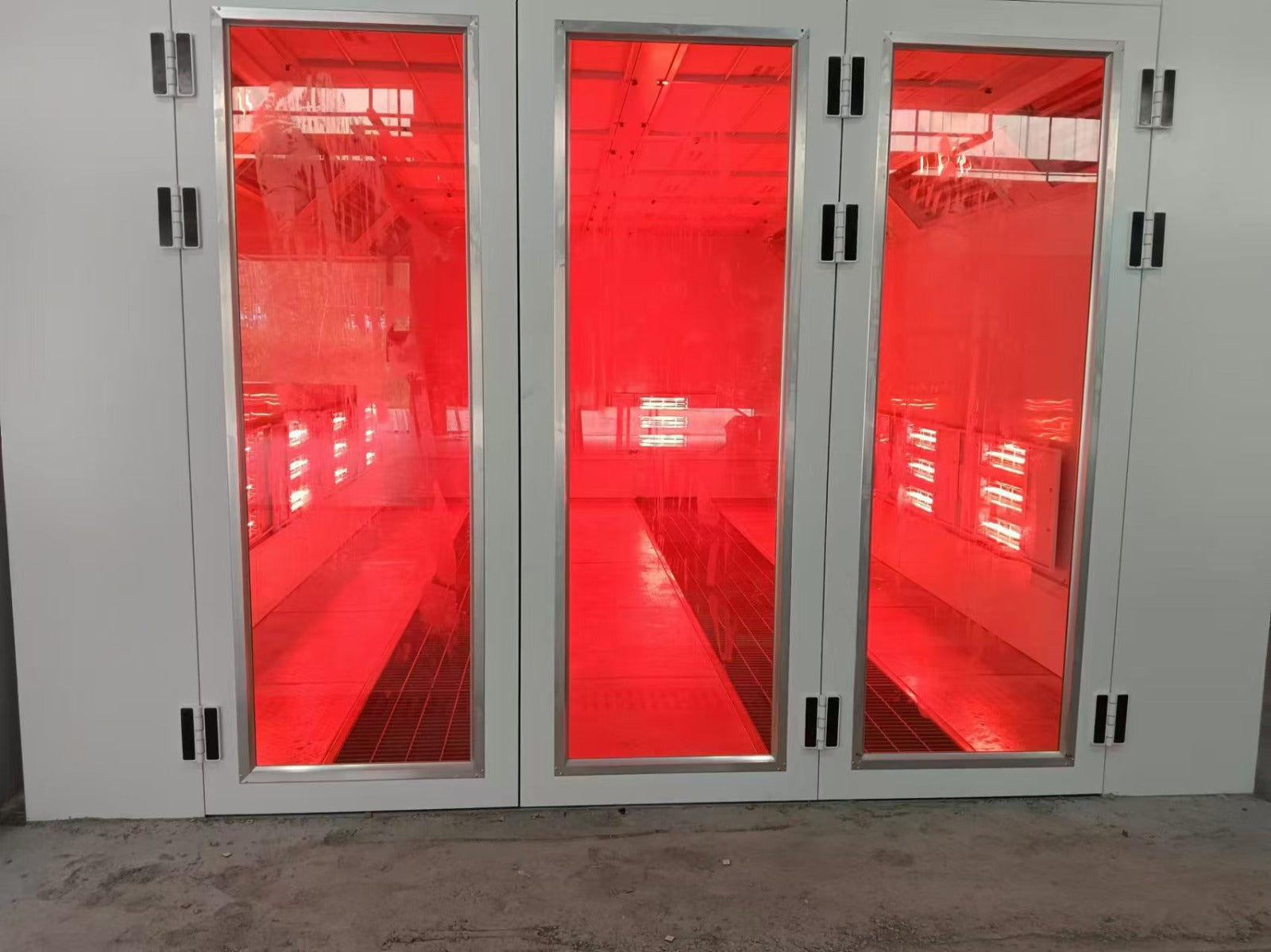

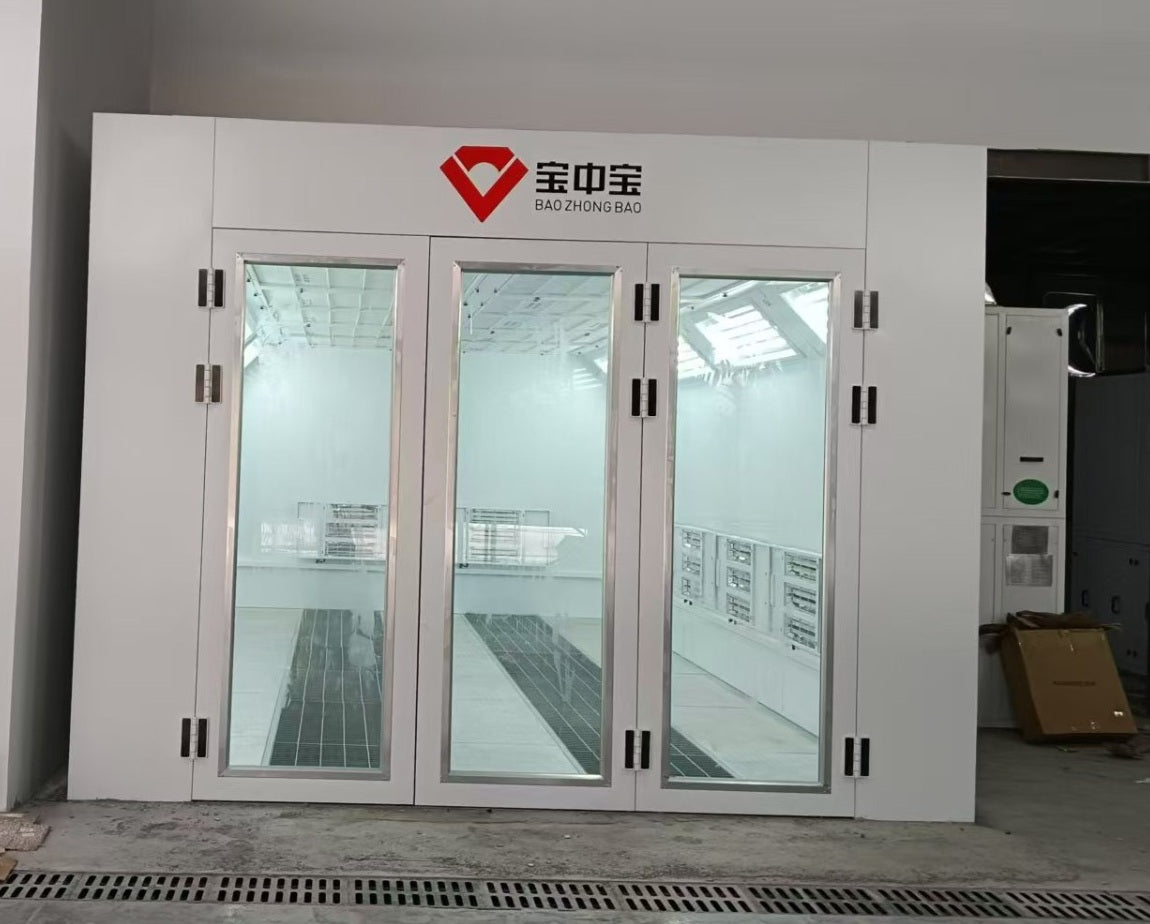

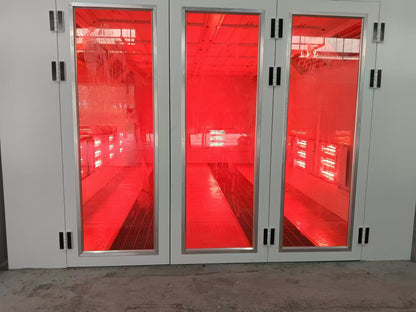

·        Main Door: 3 door leaves, 3000 mm (width) × 2600 mm (height), Full Glass Window.

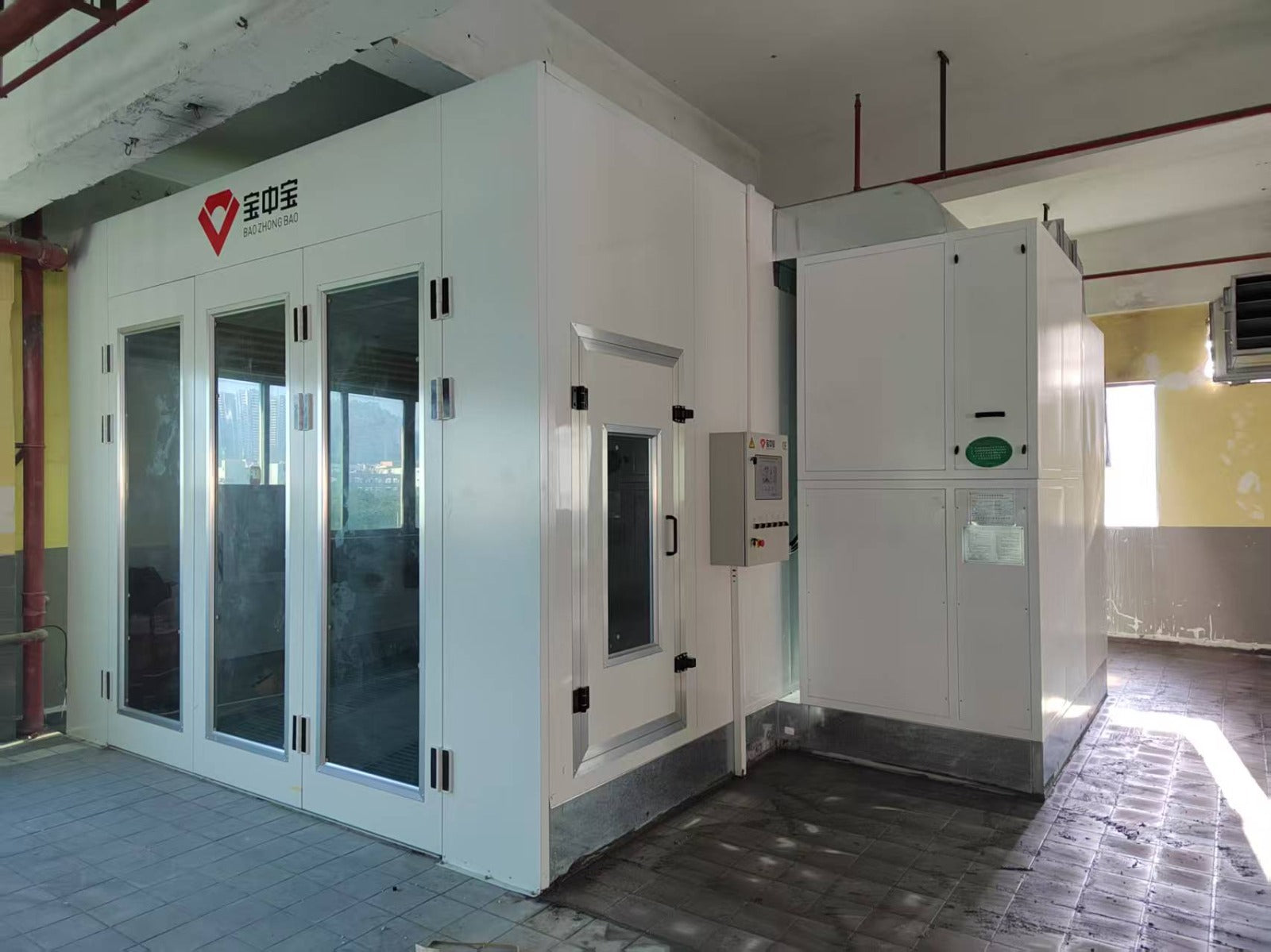

·        Service Door: 800 mm (width) × 2000 mm (height).

Construction Materials:

·        Walls: 50 mm thick EPS (Expanded Polystyrene) filled with 0.4 mm steel board.

Provides insulation and durability.

·        Basement: Two-line grilles and three-line diamond plates metal.

Reinforced flooring for heavy-duty use.

Ventilation System:

·        Inlet Fan: 1 × 7.5 KW (BZB turbo fan), Air capacity: 25,000 m³/h.

·        Outlet Fan: 1 × 7.5 KW (BZB turbo fan), Air capacity: 25,000 m³/h.

High-capacity ventilation for air circulation and temperature control.

Heating System:

·        Diesel Burner: Riello G20, Italy.

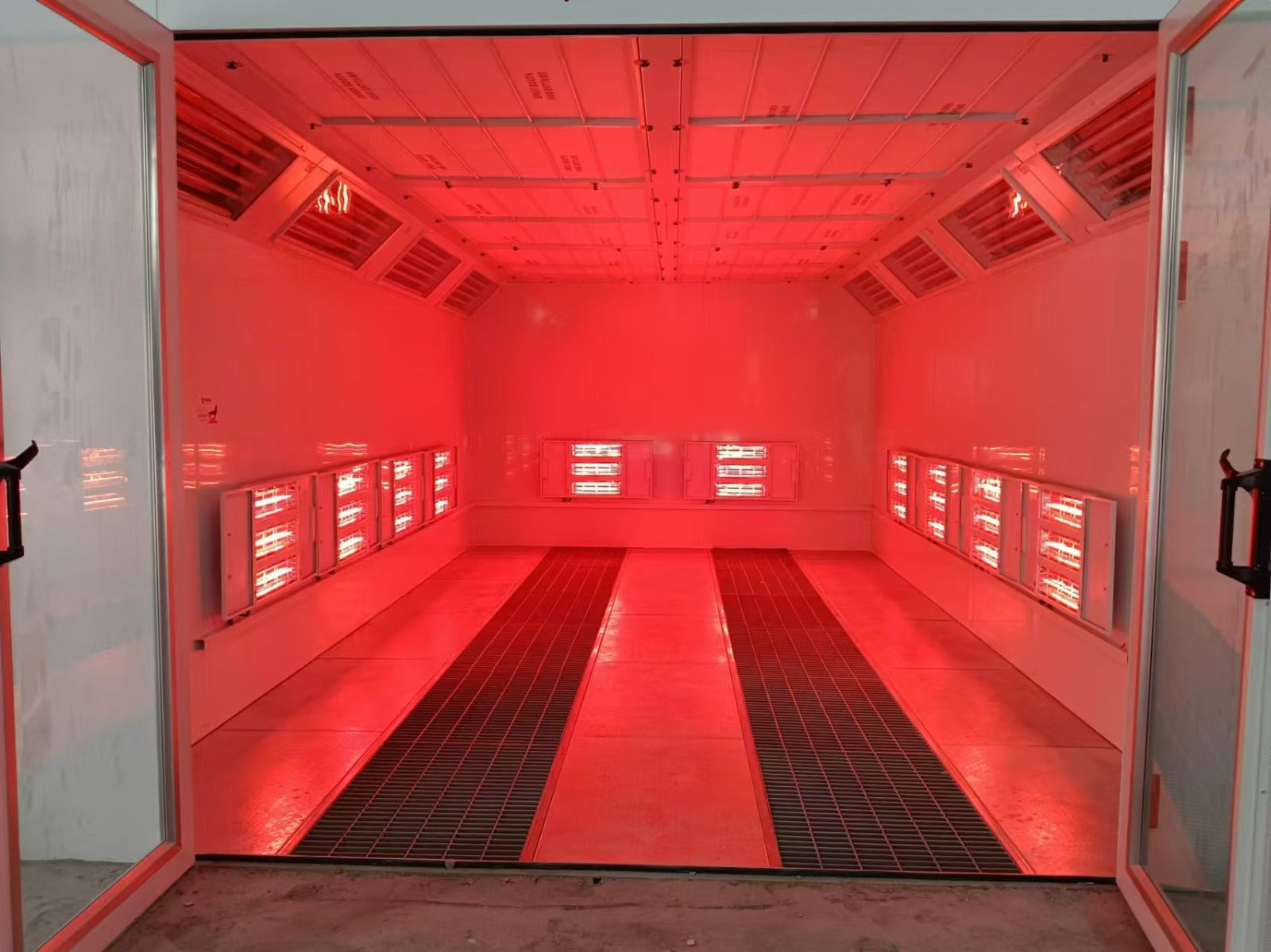

·        Infrared Lights Heating: 30 KW Infrared Electric Heater.

Dual heating system for efficient temperature management. (Diesel & Electric)

Lighting:

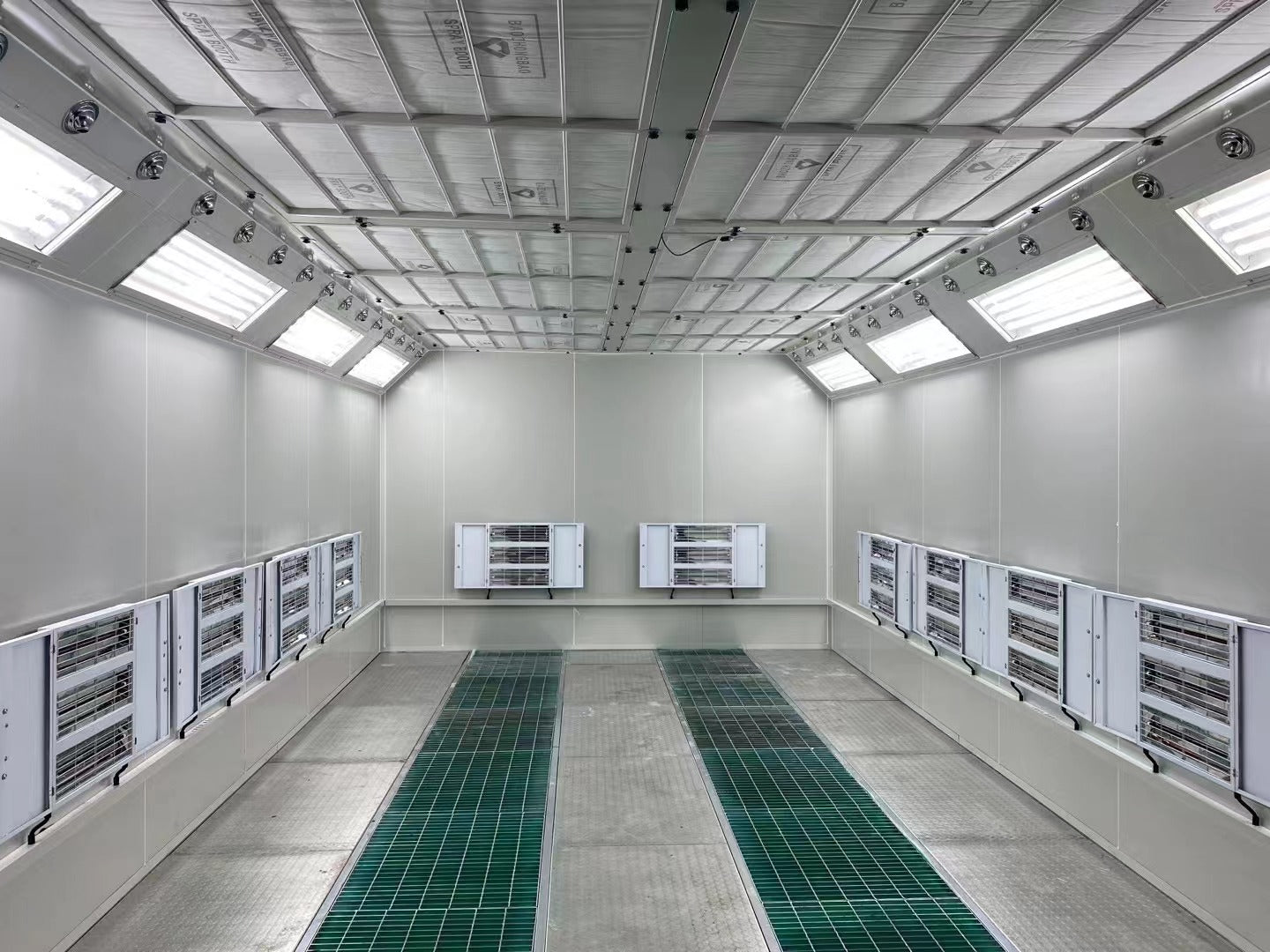

·        Ceiling Lights: 32 × 16W LED lamps.

·        Side Lights: 16 × 16W LED lamps.

Energy-efficient LED lighting for bright, even illumination.

Exterior Features:

·        2 Uphill Ramps

Electrical System:

·        Total Power: 16.5 KW.

·        Voltage: 380V, 50HZ, 3-phase.

·        Control System: Main devices are Schneider, Germany (high-quality electrical components).

·        Circular Pressure Gauge: For monitoring pressure systems.

·        Power Switch on Panel: Easy access for control.

Color:

·        White: A neutral, clean, and professional appearance.
